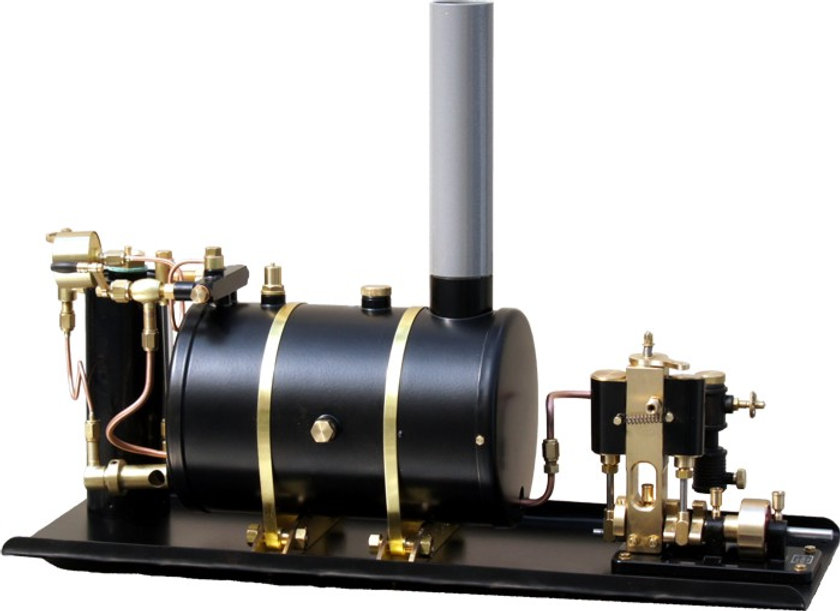

Ship Steam System

The "Compact" ship's steam system is already fully assembled, test-run and ready for use straight from the packaging.

The horizontal boiler is ideal for installation in an open barge. The model should have a water displacement of between 10-15kg. The steam engine with 2 oscillating cylinders is powerful enough for propellers in the 50-70mm range. A reversing valve for forward/reverse travel is already installed.

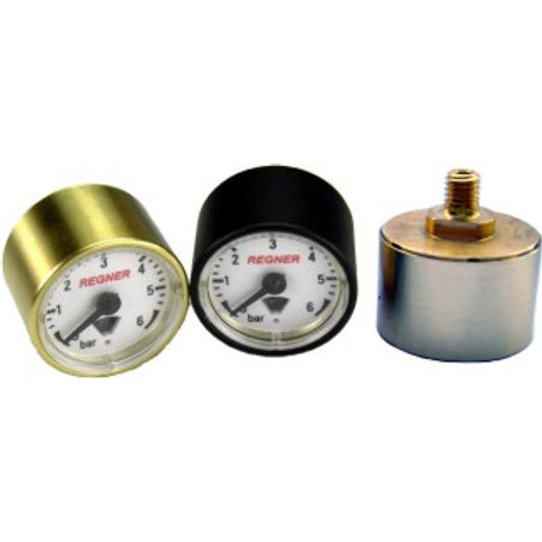

In addition to the engine, the set consists of a boiler with tubular burner, pressure gauge, siphon and gas tank.

The system is suitable for operation with liquid gas from commercially available gas cartridges. A transfer adapter is required for transferring gas into the gas tank.
A remote-controlled gas tap is also available as an option.

This system is ordered from the manufacturer after the order has been placed! Delivery times must be expected.

Technical data:

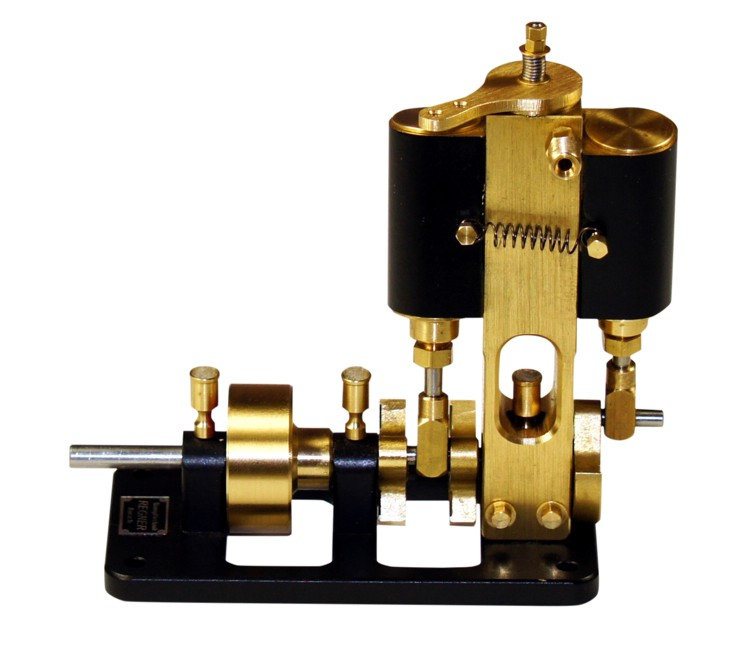

2-cylinder oscillating machine with reversing valve
Bore Ø 10mm
stroke 14mm
Flywheel Ø 25mm
Crankshaft Ø 4mm
shaft height 15mm
Length 345mm
Width 140mm
Height above boiler 122mm
Height above chimney 260mm
Boiler capacity 320ml
Gas tank capacity 78ml
Tube burner with nozzle Ø 0.2mm
