Breton Fishing Cutter ANNA 3

Breton fishing cutter ANNA 3 kit

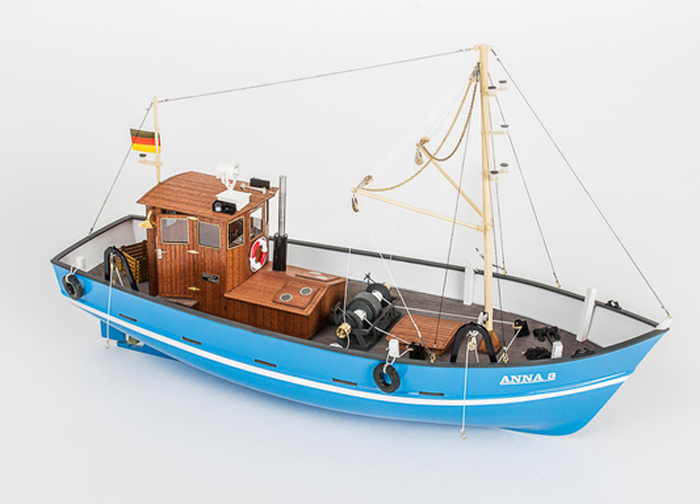

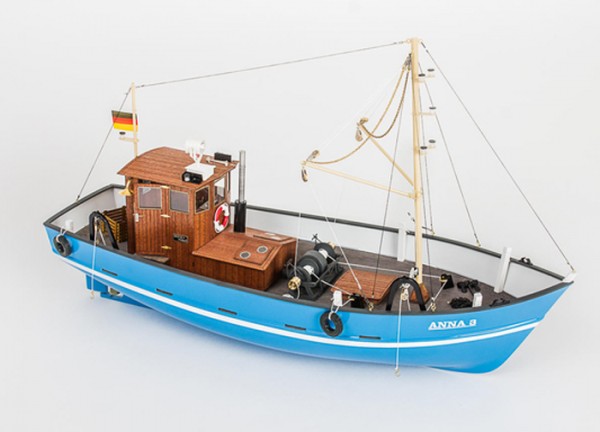

Anna 3 is a replica of a Breton fishing cutter, which goes fishing by means of a trawl net spread on the side.

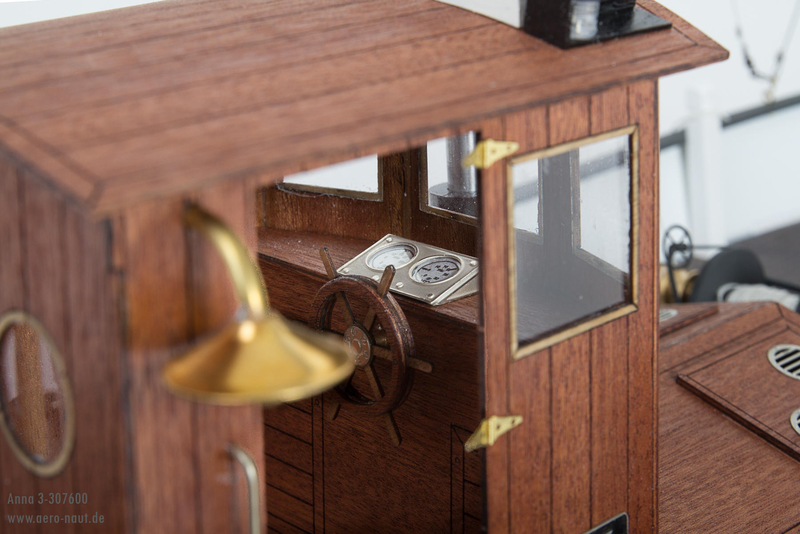

The model is constructed in 1:20 scale. The large, voluminous hull is thermoformed from ABS. All wooden parts are laser-cut and manufactured in the usual aero-naut quality for a precise fit. The boat deck already has planks and markings that are laser engraved. The cabin is made of fine mahogany plywood, the window panes are cut out of Vivak for an exact fit. The masts and trees are made of aluminum tubes. The highlight of the model is the finely detailed net winch with numerous etched parts, which can be made functional and operated to lay out nets with the help of an electric sail winch (not included in the kit). The net winch is included with the model as a laser kit. Other additional functions can be implemented at the builder's discretion. Anna 3 becomes a gem with an extensive set of etched parts made of nickel silver. Hardly any superstructure part on the deck is not enhanced by the metal decorative elements. The etched parts set includes about 100 etched parts and is also included in the kit. A functional rotating and swiveling spotlight ensures that the deck is always well lit. The model can be equipped with many other special functions, e.g. with our light modules. The detailed illustrated building instructions in the familiar aero-naut style with 3D building stage drawings guide you through the building process.

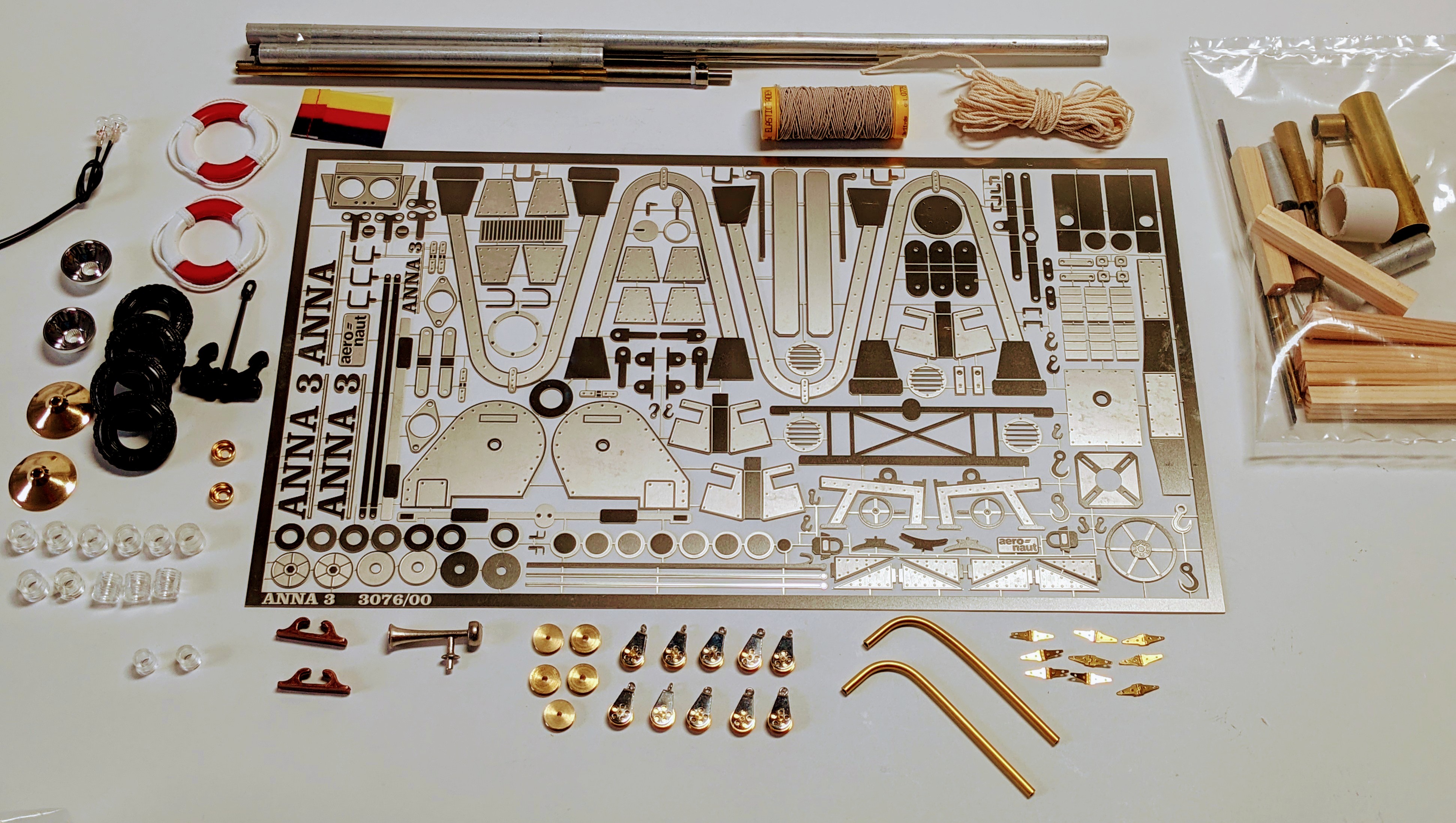

The fittings kit is already included with the model and consists of working headlights, position lanterns and lamps, anchors, blocks, net winch as a kit, cleats, net gallows, pulleys, life rings, portholes and many small parts, as well as approx. 100 etched parts made of nickel silver.

The model kit contains:
-prefabricated hull made of ABS
-lasered boat deck
-precisely lasered wooden parts made of mahogany plywood and birch plywood
-aluminum tubes for masts and trees, rigging
-steven tube with shaft
-Detailed building instructions D

A slow turning motor and a 45mm 3 blade ship's propeller are required for propulsion.

Technical data:
Width [mm] 260
Length [mm] 700
Draught [mm] 65
Scale M1:20
