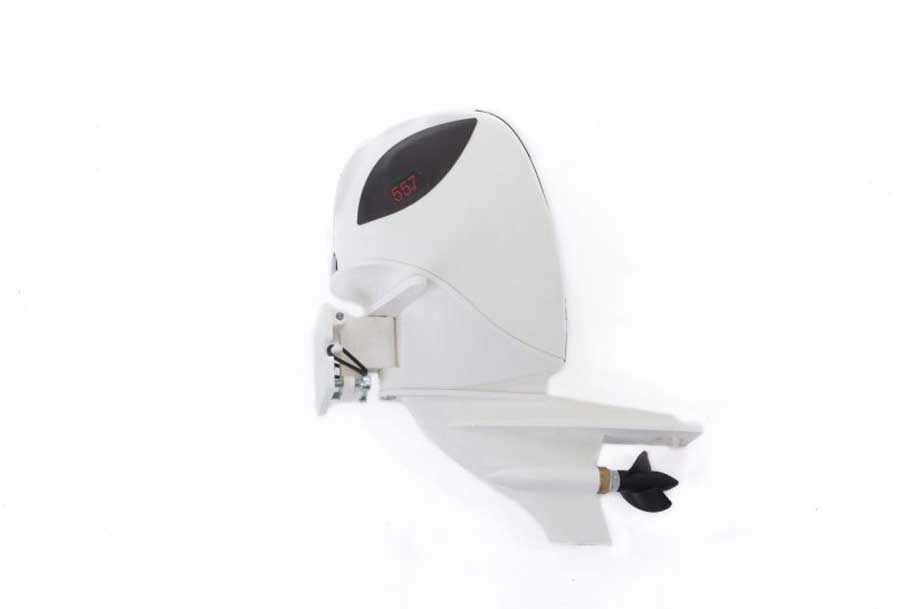

Outboard Engine Seven

69.90€ *

Prices incl. VAT plus shipping costs


Delivery time appr. 1-3 workdays Europe longer

  • 700507
  • Aeronaut
  • Neuer Artikel
A modern outboard motor made of plastic for electric motors from approx. 700-1000 watts. It is... more
Product information "Outboard Engine Seven"

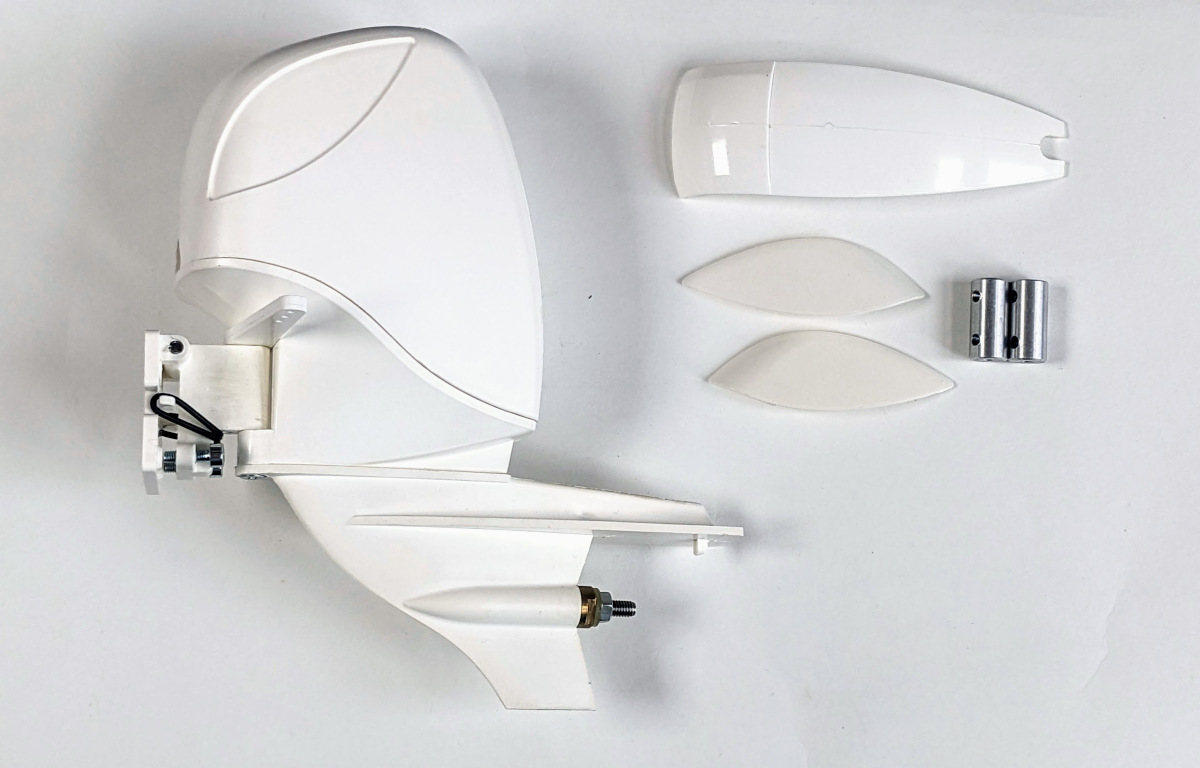

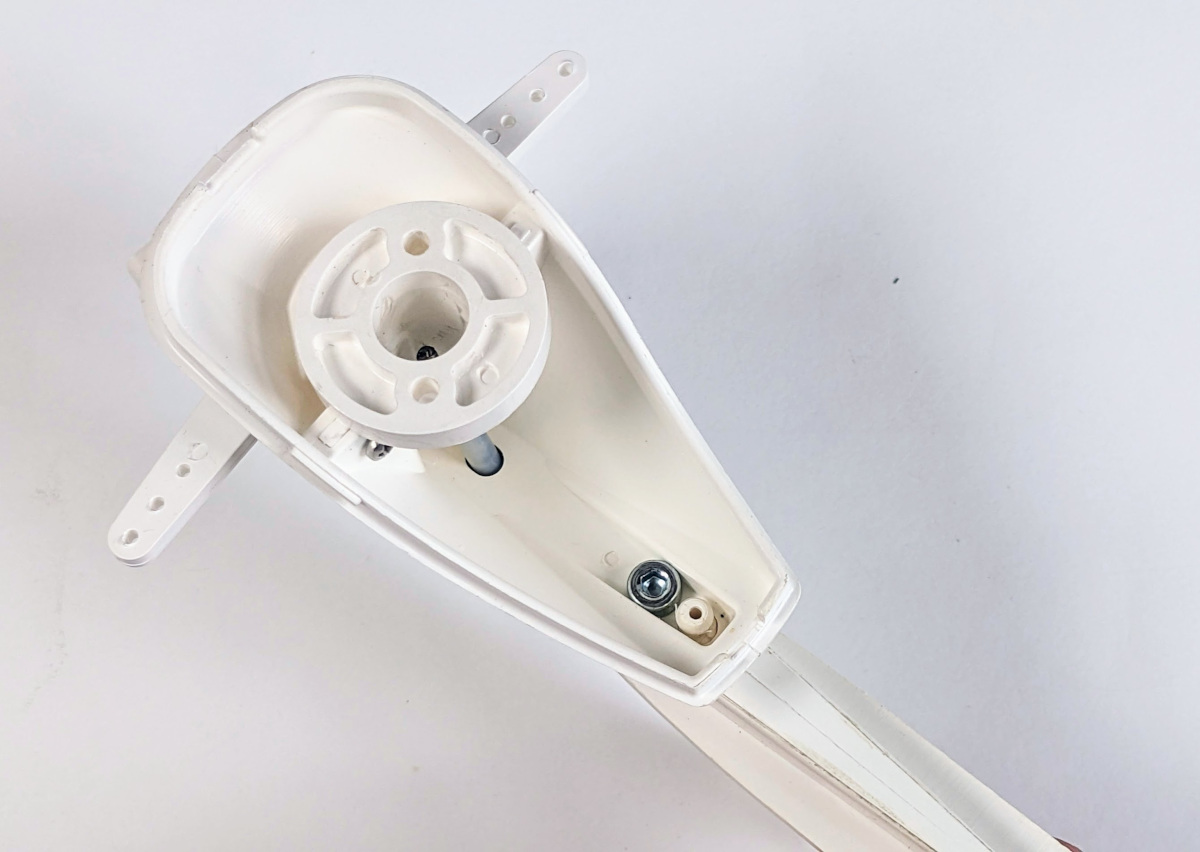

A modern outboard motor made of plastic for electric motors from approx. 700-1000 watts. It is driven by a flexible shaft in a Teflon tube. The housing is made of white ABS and can be painted as required. The three individual plastic covers are glued to the housing cover after painting. They are mounted on the transom of the boat with 4 screws and can be adjusted in height by approx. 7 mm. The angle of attack can be freely adjusted. Supplied in white without motor and propeller, but with two couplings for motor shafts 3.17 and 4.0 mm. Speed up to approx. 26,000 rpm.

Suitable motors are brushless internal or external rotor motors up to Ø approx. 28mm (bolt circle 19mm) and a length of approx. 48mm with a power of up to 1000W with
2000-3500kV

Technical data:
Length approx. 140 mm
Width approx. 54 mm
Height approx. 157 mm
Drive flex shaft
Motor power up to approx. 700 W
Shaft coupling 3.17/4.0 mm
Motor Ø 28/35 mm
Bolt circle Ø 19 mm
Max. propeller Ø 32 mm
