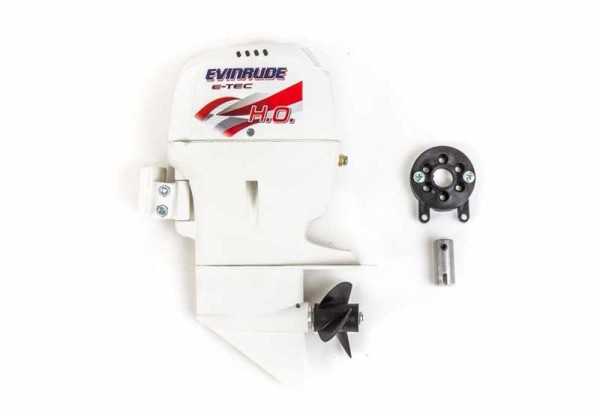

Modern outboard motor for sports boats up to approx. 100 cm in length.
Power is transmitted via high-quality metal bevel gears on a 3-blade propeller with a diameter of 42 mm. The outboard motor is supplied without a built-in electric motor. The bevel gears must always be well greased, a grease nipple is already installed on the housing. Brushless motors up to Ø approx. 36mm and a length of approx. 40mm with a power of up to 800W and 2000-2500 rpm are suitable. An optionally available water cooling system is recommended for external rotor motors.
The scope of delivery includes a coupling for the motor shaft 5 mm as well as a mounting plate for the electric motor with different connection holes for different motor types.

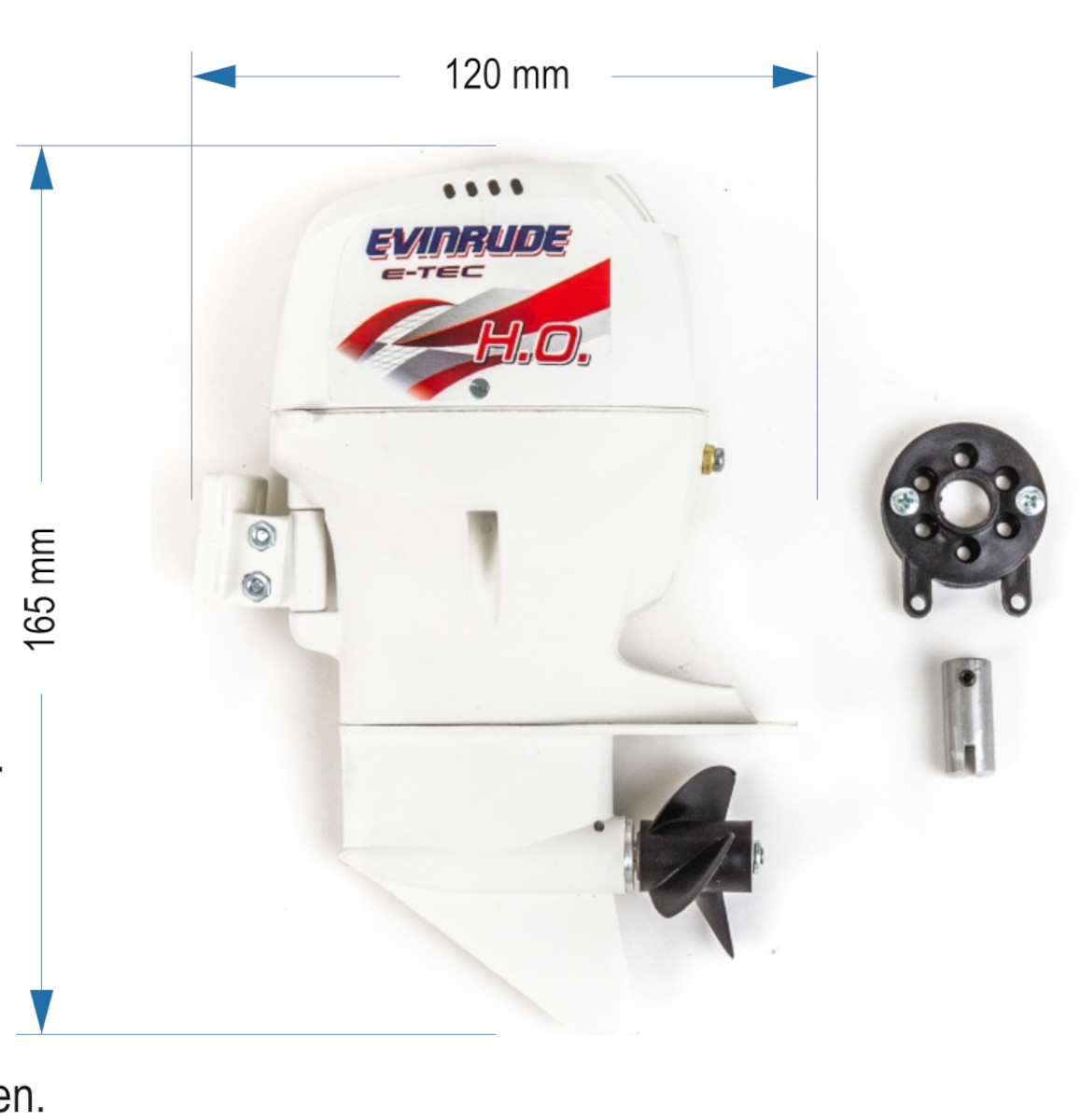

Technical data: Length approx. 100 mm Width approx. 48 mm Height approx. 170 mm Bevel gear drive Motor power up to approx. 600 W Shaft coupling 5.0 mm Motor Ø 28/35 mm Bolt circle Ø 19 mm Max. propeller Ø 42 mm
